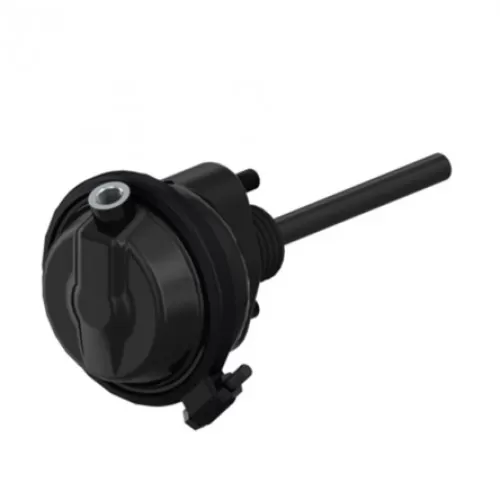

Brake Chamber 9'' (Cam Brakes)

Bolt lengths - 25.0 mm
Bolt threads - M12 x 1.5
Clamp band - 135 mm
Clamp band position -45°
Distance between bolts - 76.2 mm
Max. operating pressure - 8.0 bar
Operating pressure - 8.0 bar
Output force - 3800 N
Output force m - 3800 N
Port (side) - M16 x 1.5
Port angle - 180°
Port threads - M16 x 1.5
Stroke - 57.0 mm
