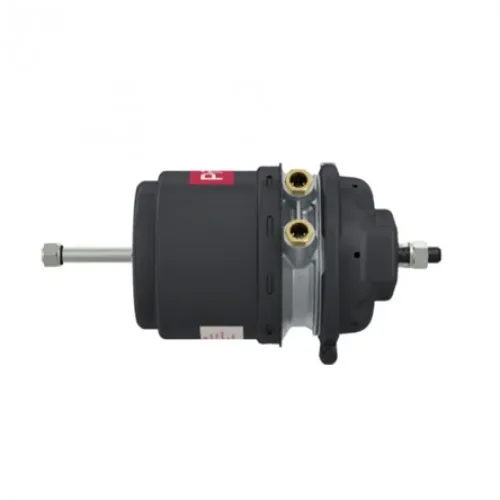

Spring Brake Actuator DISC 20/24-65mm

Bolt lengths - 43.0 mm
Bolt threads - M16 x 1.5
Connection port / fitting - M22×1.5/VOSS 232
Connection specification - JED-388-3
Distance between bolts - 120.6 mm
Max. operating pressure - 10.0/8.5 bar
Output force service brake - 7.7 kN
Output force spring brake - 5.5-10 kN
Port thread 11 - M22 X 1.5
Port: working pressure [p emax.] - 11: 10 bar (13 bar), 12: 8.5 bar (11 bar)
Push-rod length - 15 mm
Push-rod threadBall - R8
Release pressure - 4.9 bar
Return-spring force - 220 N
Stroke - 65/65 mm
Total length - 286.0 mm
Type - 20/24
Type of operation - Disc
Size (mm x mm x mm) 400 x 210 x 205
