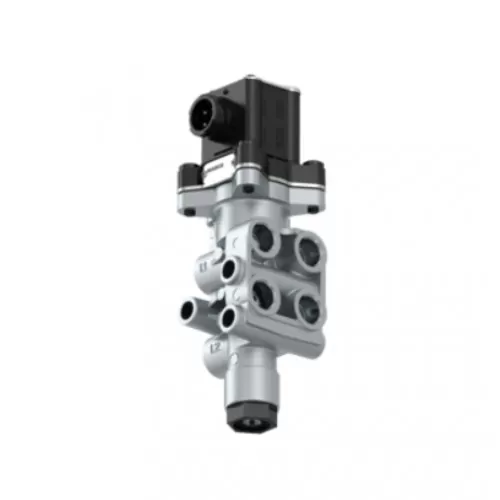

Lift Axle Control Valve 12 V Wabco

Product Code: W4630840500 logo
Alternative: 4630840500 Wabco
In stock

Rodyti kainą

665,50 incl. VAT
- +
Description

Electrical connection - DIN 72585-A1-3.6-Sn/K1
Max. operating pressure -13.0 bar
Port thread 11 - 3/8-18 NPTF
Port thread 12 - 3/8 - 18 NPTF
Port thread 21 - 2x 3/8 - 18 NPTF
Port thread 22 - 2x 3/8 - 18 NPTF
Port thread 31- Flap exhaust
Protection Class IP 6K9K
Rated current (A) 620 mA
Temperature range -40°C to +65°C
Type LACV
Version - Single-circuit
Voltage (V) 12 V
Size (mm x mm x mm) 65 x 192 x 63
