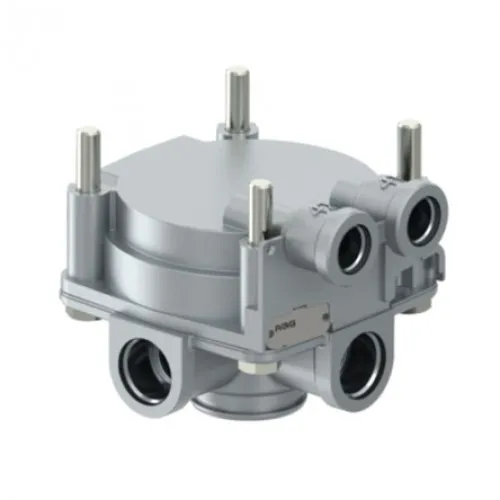

Relay Valve

Max. operating pressure - 10.0 bar
Operating pressure - 13.0 bar
Port thread 1 - M22 x 1.5 VOSS
Port thread 21 - M22 x 1.5 Voss
Port thread 22 - M22 x 1.5 Voss
Port thread 41 - M16 x 1.5 JED -388- VOSS connection
Port thread 42 - M16 x 1.5 JED -388- VOSS connection
Response pressure - 0.3 bar
Technical specification - AM specification
Temperature range -40°C to +80°C
Size (mm x mm x mm) - 145 x 130 x 130
