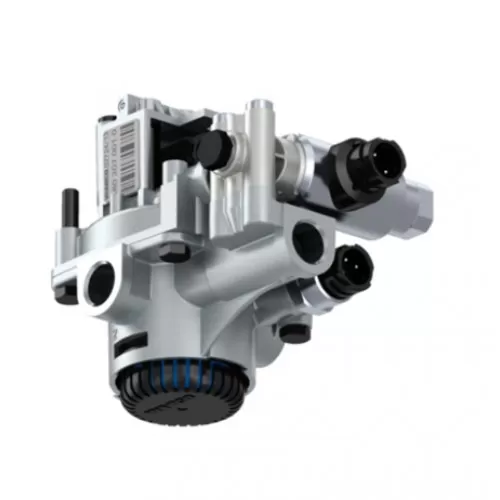

EBS-Relay Valve Trailer EBS 3rd modul

Distance between bolts 75.0 x 75.0 mm
Electrical connection 3x Bayonet DIN 72585
Max. operating pressure 10.0 bar
Mounting 3x M8
Port thread 1 M22 x 1.5
Port thread 2 M22 x 1.5
Port thread 3 Integrated Silencer
Port thread 4 M12 x 1.5 JED - 464
Product category - Device
Protection class IP 69K
Temperature range -40°C to +80°C
Voltage 24 V
Size (mm x mm x mm) 181 x 149 x 132
