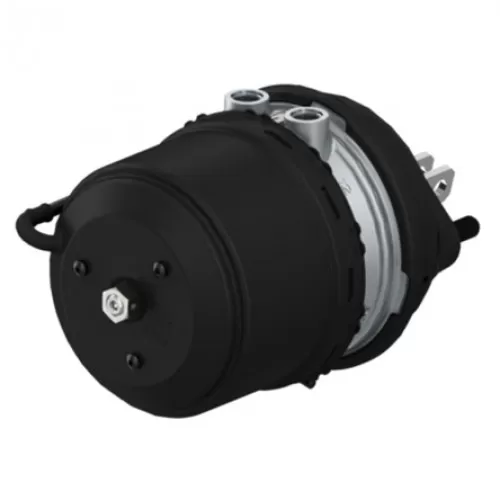

Tristop-Cylinder Cam G-30/30

Bolt lengths - 33.0 mm
Bolt threads - 2 x M16 x 1.5
Clevis pins - 14 mm
Distance between bolts - 120.6 mm
Max. operating pressure - 10.2/8.5 bar
Port thread 11 - M22 x 1.5 JED - 388
Port threads - M22 x 1.5
Push-rod length - 26 mm
Release pressure - 5.1 bar
Return-spring force - 250 N
Stroke - 65/65 mm
